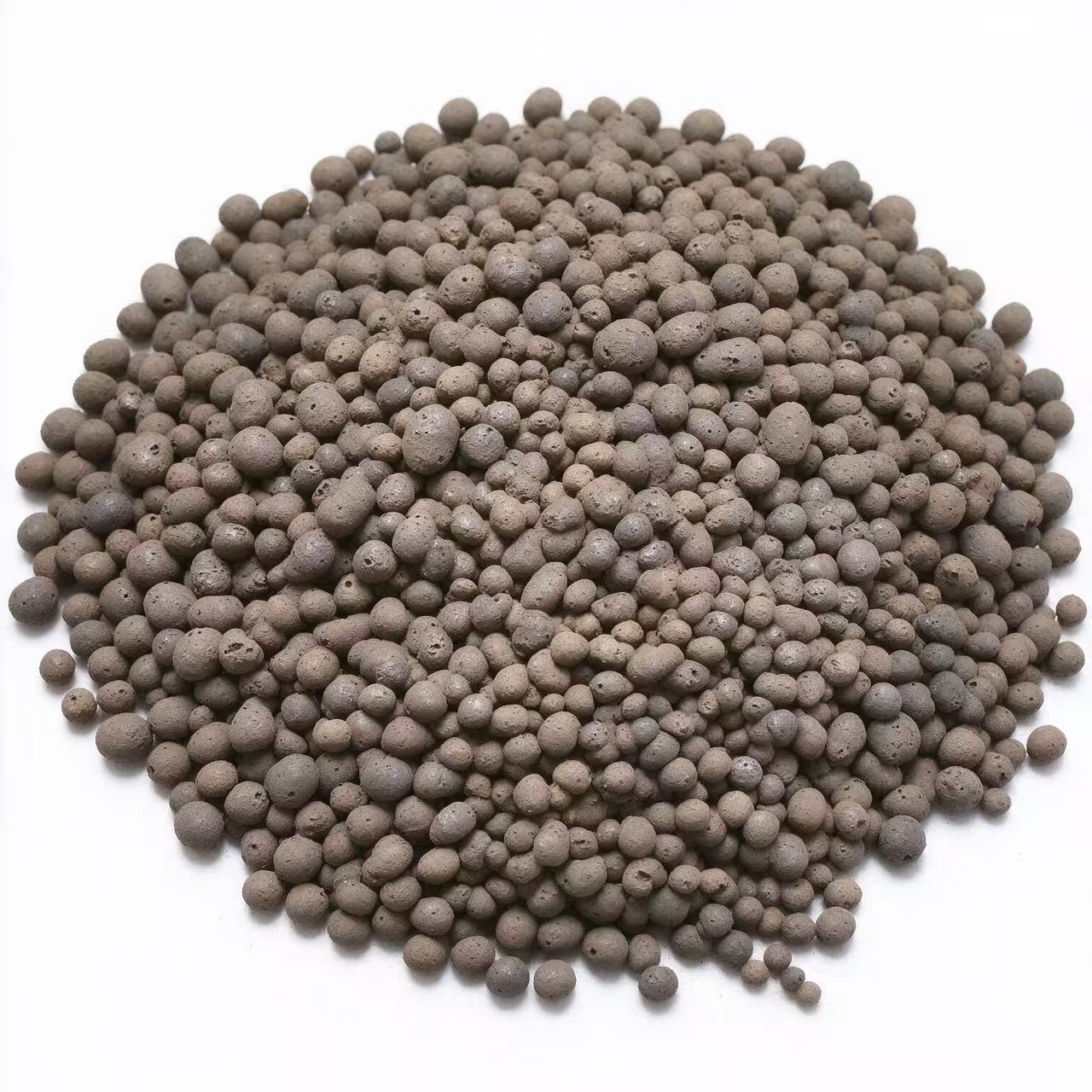

Ceramisite filter material

Product details

The ceramisite filter material is made from high-quality clay, clay, and adhesives through grinding, screening, and firing processes. It features a hard surface and numerous micropores with a high porosity. It is inoculated with aerobic activated sludge and can achieve the treatment effect of an aerated biological filter within two weeks of water intake. In the treatment of steel rolling wastewater， methods such as sedimentation， coagulation， and biological陶粒 filtration are generally used. After removing suspended solids and oil from the wastewater， it is cooled to be reused. The quality of the treated water requires a turbidity of 10-15 degrees and an oil content of less than 10 milligrams per liter.

Core Advantages：

1.The particles are round, uniform, have a rough surface, numerous micropores, well-developed internal pores, a large specific surface area, thus having a strong ability for bacterial attachment, rapid reproduction, high membrane formation efficiency. Under low-temperature and low turbidity conditions, the removal effect of ammonia nitrogen reaches the advanced level in China. The working cycle is long, and the cycle production water volume is large, generally ranging from 500 to 1000 m³/m.

2.The accumulation has a light weight and high strength, resulting in low backwashing energy consumption and small head loss. The head loss of the cleaning water is only 150mm/m.

3.It has a strong sewage interception capacity, typically ranging from 9 to 13 kg/m³.

4. The filtration speed is high, usually 15-20 m/h, and can reach up to 35 kg/m³ in some cases.

5. The water consumption during backwashing is low, only 30-40% of that of quartz filter media.

6. The chemical properties are stable, with strong resistance to acid and alkali, and a long service life.

Applicable scenarios：

1.Municipal sewage treatment, biological aerated filter (BAF), high-load biological filter

2.Industrial wastewater treatment, dyeing wastewater, papermaking wastewater, food processing wastewater

3.Drinking water deep treatment, groundwater filtration, swimming pool water circulation filtration

4.Filter tanks, filter pad layers, oil-water separation, wet flue gas desulfurization

5.Landscape planting, soilless cultivation, heat insulation and preservation, etc. (non-water treatment applications)

Usage instructions：

The ceramisite filter material can be directly filled into the filter tank, filter bed or BAF reactor. The appropriate particle size should be selected based on the water quality. Generally， smaller particle sizes are used for shallow filtration， while those with higher porosity are chosen for the biofilm method. During operation， regular backwashing is required， and the backwashing intensity and expansion rate should be controlled to prevent the loss of filter material. When the suspended solids in the water are high， it is recommended to have a pre-precipitation or filtration pretreatment.

Shipment

FAQ

1.  Are you a trading company or a manufacturer?

We are a company that integrates R&D, production, sales and technical services.

2. What is your MOQ?

1) Generally 500-1000 kg. But any trial orders ≤ MOQ are warmly welcomed.
2) If you have a sample order, pls feel free to contact us so that can provide you with helpful advice according to your needs to save cost.

3. Are you supported SAMPLE? Is it for FREE?
Yes, sample is supported and it is for free. But freightcharges should be collect.

4.  How to ensure the product quality?
1) Support pre-production sample before mass production.
2) Support final Inspection before shipment.

5.  What services can you provide?
1) Selected & suitable products(from ourselves manufacture or bulk high-quality cooperative suppliers) and competitive price.
2) One-stop consultation and freight forwarding services in trade process can be provided and perfectly delivery.

6.  What is your general delivery time?
Usually 3-7 working days (for ready-made samples) and 15-20working days (for bulk orders).
