Column-type activated carbon for solvent recovery

Product details

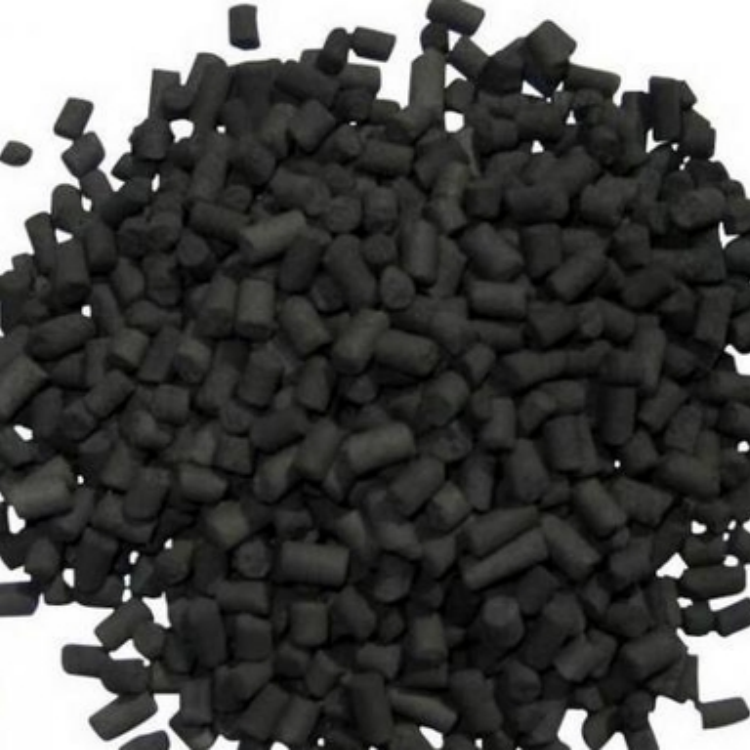

The solvent recovery column-shaped activated carbon is a type of coal-based extruded column-shaped activated carbon. It is specially developed for the "organic solvent recovery process". It is made from high-quality anthracite as the raw material, through processes such as grinding, ingredient mixing and kneading, extrusion molding, carbonization, high-temperature steam activation, and screening and refining. The finished product is a black solid cylindrical particle, featuring a composite pore structure of micropores and mesopores that is suitable for solvent recovery conditions. It has a large adsorption capacity and smooth desorption and analysis. It is a dedicated adsorption material for solvent recovery devices in the printing, chemical, and coating industries.

Compared with ordinary waste gas treatment activated carbon, the solvent recovery special carbon focuses on optimizing the "repeated adsorption - steam desorption cycle performance". It maintains stable adsorption capacity even after thousands of regeneration cycles and is not prone to powdering or fragmentation. The working principle is to capture organic solvent vapor through physical adsorption. After saturation, water vapor is introduced for heating and desorption. The solvent vapor condenses and separates, achieving the recovery and reuse of organic solvents. This not only meets environmental protection emission requirements but also helps customers recover valuable solvents and reduce raw material procurement costs.

The solvents that can be efficiently recovered include: ethyl acetate, toluene, xylene, acetone, butanone (MEK), n-hexane, isopropanol, ethanol, dichloromethane, trichloromethane, and ether-based organic vapors. They are widely used in solvent recovery equipment for industries such as soft packaging flexographic printing, coating, paints, pharmaceutical and chemical industries, artificial leather, adhesives, and extraction processing, and are installed in fixed-bed adsorption tanks and dual-tower/multi-tower continuous solvent recovery systems.

Product Core Advantages：

1.High CTC carbon tetrachloride adsorption rate, large solvent loading capacity

Specifically optimized the gas-phase adsorption pore structure, with high adsorption capacity for organic vapors, long single adsorption cycle, and improved solvent recovery yield.

2.High intensity, resistant to repeated steam regeneration, low powder content

The extrusion molding process results in high mechanical strength of the carbon columns. Under multiple cycles of steam purging and pressure fluctuation for regeneration, the columns are less likely to break or lose powder, and they will not clog the adsorption tower, pipelines, and condensers, thereby reducing downtime and maintenance requirements.

3.Bed layer wind resistance stabilization

The cylindrical particles have uniform particle size, the material layer has stable voids, the air flow pressure drop is controllable, the equipment fan load is stable, ensuring the stable and continuous operation of the entire recovery system.

4.Efficient desorption, low residue

The pore structure is compatible with solvent molecules, the steam desorption process is fast, there is little residual solvent in the carbon, the regeneration efficiency is high, and the degradation rate during long-term circulation is slow.

Usage Tips: Remove dust and tar from the intake air; Control the intake air temperature within 40℃; For high-humidity conditions, pre-treatment is required to prevent water vapor from occupying the adsorption sites and reducing the efficiency of solvent adsorption.

Shipment

FAQ

1.  Are you a trading company or a manufacturer?

We are a company that integrates R&D, production, sales and technical services.

2. What is your MOQ?

1) Generally 500-1000 kg. But any trial orders ≤ MOQ are warmly welcomed.
2) If you have a sample order, pls feel free to contact us so that can provide you with helpful advice according to your needs to save cost.

3. Are you supported SAMPLE? Is it for FREE?
Yes, sample is supported and it is for free. But freightcharges should be collect.

4.  How to ensure the product quality?
1) Support pre-production sample before mass production.
2) Support final Inspection before shipment.

5.  What services can you provide?
1) Selected & suitable products(from ourselves manufacture or bulk high-quality cooperative suppliers) and competitive price.
2) One-stop consultation and freight forwarding services in trade process can be provided and perfectly delivery.

6.  What is your general delivery time?
